Description

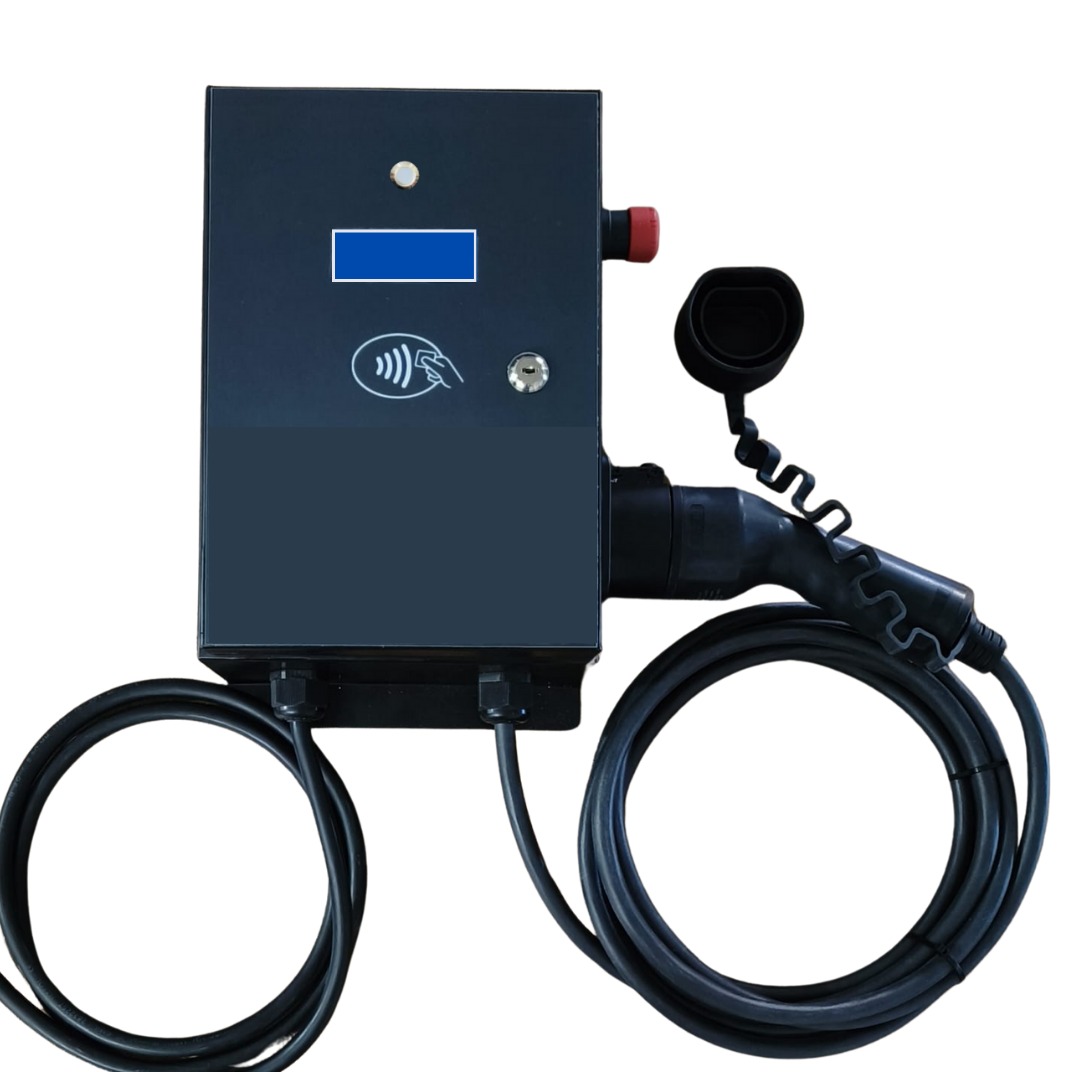

UJALO 11kW AC EV Charger is built to support the growing demand for electric vehicle charging infrastructure in India. This smart AC charger provides faster charging compared to basic chargers and is ideal for residential, commercial, and public EV charging applications.
The charger supports a Type-2 connector standard, ensuring compatibility with most electric vehicles available in India. It features real-time charging status indication through LED display and supports intelligent connectivity options such as Wi-Fi, optional 4G, and Ethernet.
With OCPP 1.6J protocol integration, the charger can connect to central management systems for monitoring, control, and billing. It also supports multiple authentication methods including RFID cards, QR code access, and plug-and-charge functionality.
Built with strong weather protection (IP56), this charger is suitable for both indoor and outdoor installation. The integrated safety features and energy monitoring system ensure secure and efficient EV charging.
UJALO supplies EV chargers to EPC companies, installers, dealers, and EV infrastructure developers across India.
Key Features
-
11kW AC EV Charger
-
Type-2 EV charging connector
-
Smart EV charging technology
-
OCPP 1.6J compatible
-
Wi-Fi, 4G (Optional), Ethernet connectivity
-
RFID / QR / Plug & Charge authentication
-
Dynamic load balancing support
-
LED charging status indicator
-
Compact wall mount design
-
Outdoor ready IP56 protection
-
Inbuilt energy monitoring
-
Ideal for residential & commercial use
-
Bulk supply available for EPC & dealers
-
1 Year Manufacturer Warranty
Technical Specification Table
| Parameter | Specification |
|---|---|
| Charger Type | AC EV Charger |
| Output Power | 11 kW |
| Input Voltage | Three Phase 400V AC ±10% |
| Output Voltage | 400V AC ±10% |
| Maximum Output Current | 16A |
| Frequency | 50Hz |
| Connector Type | Type-2 (IEC 62196-2) |
| Dynamic Load Balancer | Yes |
| Connectivity | Wi-Fi, 4G (Optional), Ethernet (Optional) |
| Authentication | QR Code, Plug & Charge, RFID |
| Protocol | OCPP 1.6J |
| Installation | Wall Mount / Stand Mount |
| IP Rating | IP56 |
| Dimensions | 400 × 250 × 125 mm |
| Weight | 6 kg |
| Usage Type | Home / Personal / Public |
| Warranty | 1 Year Manufacturer Warranty |
Protection & Safety Features
-
Auto Power Cut-Off
-
Power Theft Protection
-
Inbuilt Energy Measurement
-
Over & Under Voltage Protection
-
Charger Over Temperature Protection
-
Emergency Push Button
-
Type B Earth Leakage Protection
