Description
Product Overview

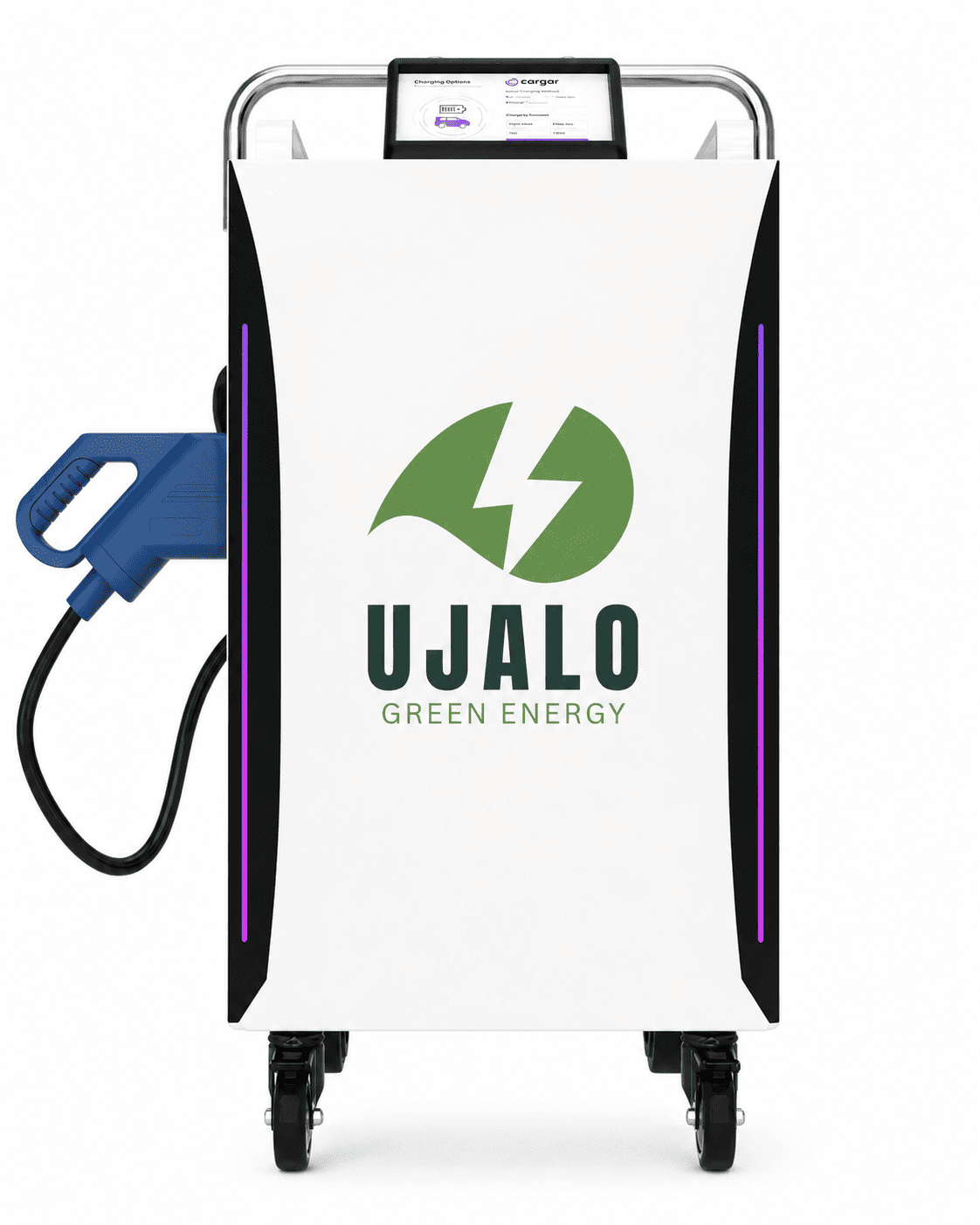

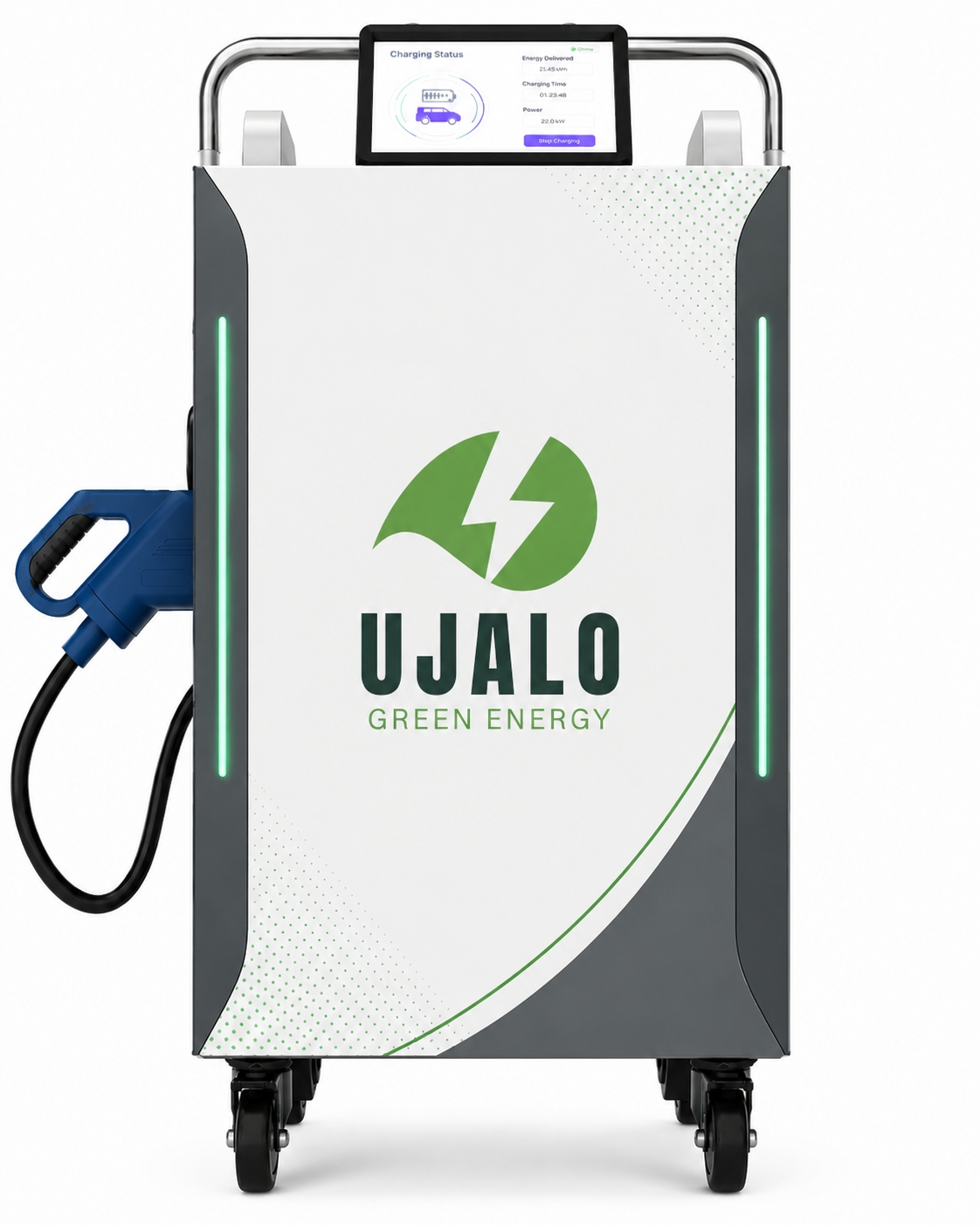

The UJALO Portable DC Fast EV Charger – 30kW is an advanced mobile EV charging solution designed for flexible deployment across multiple locations. Built for EV fleet operators, charging station owners, service centers, dealerships, and emergency charging applications, this charger delivers reliable high-speed DC charging without requiring permanent infrastructure.
Its portable plug-and-play design eliminates costly civil work and allows quick deployment wherever charging is needed. Equipped with CCS2 compatibility, optional OCPP integration, and digital payment support, the UJALO Portable DC Charger is the ideal solution for modern EV charging requirements.
“₹4.5 Lakh EV Charging Station Investment Plan PDF”
“Download Investment Plan” 🚀
Key Features
🚗 Portable & On-Grid Design
Deploy charging services wherever needed without permanent installation.
⚡ 30kW DC Fast Charging
Provides high-speed charging for electric vehicles, significantly reducing charging time.
🔌 Plug & Play Operation
Quick setup and operation with minimal installation requirements.
💳 Digital Payment Support
Supports UPI and digital payment integration for hassle-free charging transactions.
🌐 Smart Connectivity
Optional OCPP integration enables remote monitoring, analytics, and charger management.
🏗 Zero Civil Work
No foundation or infrastructure modifications required.
🛞 Easy Mobility
Equipped with heavy-duty wheels for convenient transportation and deployment.
📊 Smart Monitoring
Optional touchscreen HMI for real-time charger status and user interaction.
Technical Specifications
Input Specifications
| Parameter | Specification |
|---|---|
| Input Connection | Three Phase AC (285V – 475V) |
| Input Power | Up to 30 kVA (Configurable) |
| Input Over Voltage Protection | 490V ±10Vac |
| Input Under Voltage Protection | 270V ±10Vac |
| Input Cable Type | 5 Core 10 sq mm Copper Cable |
| Input Cable Length | 20 Meter (Configurable) |
| Input Connectors | 2 × IP67 Rated |
Output Specifications
| Parameter | Specification |
|---|---|
| Output Connector | CCS2 Combo |
| Maximum Output Power | Up to 30kW DC |
| Output Voltage Range | 50VDC – 1000VDC |
| Maximum Output Current | 120A |
| Output Over Voltage Protection | 1020V ±10V DC |
| Output Cable Length | Up to 5 Meter (Configurable) |
Smart Control Hub (Optional)
| Parameter | Specification |
|---|---|
| Display | Up to 7-inch Touchscreen HMI |
| User Interface | Easy & Intuitive |
System Performance
| Parameter | Specification |
|---|---|
| Maximum Efficiency | >96% |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 5%RH – 95%RH Non-Condensing |
Physical Specifications
| Parameter | Specification |
|---|---|
| Weight | Approx. 40 kg |
| Material | High-Grade MS |
| Protection Rating | IP54 |
| Cooling System | Air Cooled |
| Mobility | 4 Heavy-Duty Wheels |
Communication & Integration
| Feature | Status |
|---|---|
| OCPP Integration | Optional |
| Smart Monitoring | Available |
| Digital Payment Support | Available |
| Remote Management | Optional |
Applications
- EV Charging Stations
- Highway Charging Points
- EV Fleet Charging
- EV Dealerships
- Service Centers
- Emergency Roadside Charging
- Corporate Campuses
- Residential Societies
- Temporary Charging Infrastructure
- Mobile EV Charging Services
Why Choose UJALO Portable DC Fast Charger?
✔ Up to 30kW Fast DC Charging
✔ CCS2 Compatible
✔ Portable Mobile Design
✔ Plug & Play Deployment
✔ Zero Civil Work Required
✔ UPI Payment Support
✔ OCPP Ready
✔ Smart Monitoring
✔ High Efficiency (>96%)
✔ Industrial Grade Build Quality
✔ Suitable for Commercial EV Charging
